Endura Flap Kennel Dog Door
- High energy efficiency and heavy-duty weather resistance for kennel use
- Intended for installation in solid core wood doors or pre-framed walls
- Excludes external trim frame, installation hardware, and other non-essential components for kennel applications
- Available in single flap version; locking cover may be added if desired
- Suitable for various kennel setups, including outdoor dog kennels and commercial kennels
Product Details
The Endura Flap Kennel Dog Door is identical to the Endura Flap single flap version for doors, eUpgrade your dog's kennel with the Endura Flap Kennel Dog Door, designed for maximum energy efficiency and heavy-duty weather resistance. This kennel door is perfect for installation in solid-core wood doors or pre-framed walls, providing a durable and insulated entryway for your furry friend.
The Endura Flap Kennel Dog Door is a streamlined version of the award-winning Endura Flap single flap pet door for doors, excluding non-essential components such as the external trim frame, installation hardware, template, weatherstripping, decorative hole plugs, and locking cover assembly. These exclusions make this kennel door a more affordable alternative without compromising on quality or functionality.
Designed with versatility in mind, this dog door is suitable for various kennel setups, including dog houses, dog crates, outdoor dog kennels, and commercial kennels. Each package includes two flaps per box, allowing for installation in multiple kennels. For a polished finish, you may choose to purchase a set of hole plugs separately.
The Endura Flap Kennel Dog Door offers excellent insulation value, ensuring your dog stays warm and comfortable even in extreme weather conditions. The single flap model is sufficient for most needs, but if you desire additional protection, you can opt for the double flap models available in door mount and wall mount versions.
Experience the unparalleled insulation and durability of the Endura Flap Kennel Dog Door and provide your canine companion with a comfortable and secure environment. Transform your dog's living space today with this reliable and high-quality kennel door.
Features:
- Award-winning Endura Flap design ensures optimal insulation and protection against the elements
- Streamlined design offers an affordable alternative to regular Endura Flap pet doors
- Suitable for dog houses, dog crates, and professionally built kennels
- Package includes two flaps per box, allowing for installation in multiple kennels
- Easy customization with optional locking cover and hole plugs for a polished finish

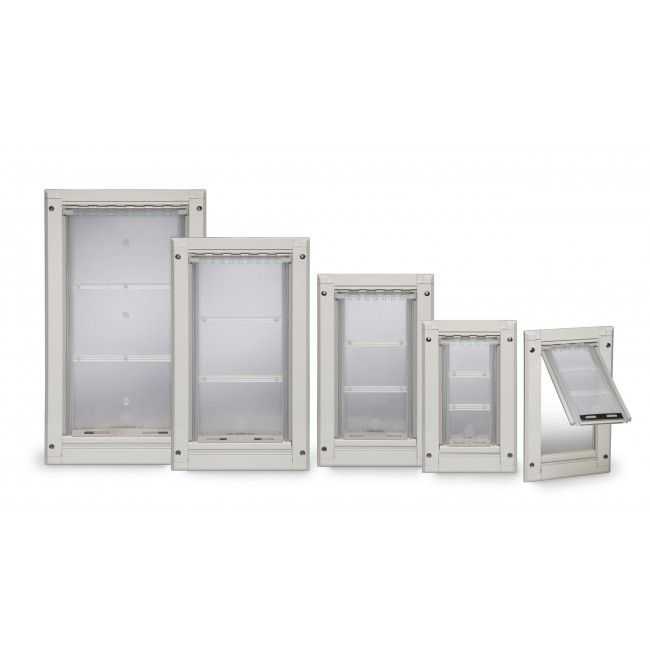

Size Chart
- Small Single Flap: 6"w x 11"h Double Flap: 6"w x 10"h
- Medium Single Flap: 8"w x 15"h Double Flap: 8"w x 14"h
- Large Single Flap: 10"w x 19"hDouble Flap: 10"w x 18"h
- Extra Large Single Flap: 12"w x 23"h Double Flap: 12"w x 22"h
Flap Dimensions:
Single Flap:6"w x 11"h
Double Flap:6"w x 10"h
The entry way your dog goes through.Outside Frame Dimensions
9 7/16"w x 16"h
The outer edge of the pet door.
Rough Cut Out:
7 1/16"w x 14 1/8"h
The size of the hole needed to fit your pet door into your wall.Flap Dimensions:
Single Flap:8"w x 15"h
Double Flap:8"w x 14"h
The entry way your dog goes through.Outside Frame Dimensions
11 1/2"w x 20"h
The outer edge of the pet door.
Rough Cut Out:
9 3/16"w x 18 3/16"h
The size of the hole needed to fit your pet door into your wall.Flap Dimensions:
Single Flap:10"w x 19"h
Double Flap:10"w x 18"h
The entry way your dog goes through.Outside Frame Dimensions
13 91/6"w x 24"h
The outer edge of the pet door.
Rough Cut Out:
11 3/16"w x 22 3/16"h
The size of the hole needed to fit your pet door into your wall.Flap Dimensions:
Single Flap:12"w x 23"h
Double Flap:12"w x 22"h
The entry way your dog goes through.Outside Frame Dimensions
15 5/8"w x 28"h
The outer edge of the pet door.
Rough Cut Out:
13 5/16"w x 26 1/4"h
The size of the hole needed to fit your pet door into your wall.| Flap Size | Flap Dimension | Rough Cut Out | Outside Frame Dimension | Recommended Pet Height |
|---|---|---|---|---|
| Small | 6" w x 11" h | 7 1/16" w x 14 1/8" h | 9 7/16" w x 16" h | |
| 6" w x 10" h | 9" - 16" (single flap)8" - 14" (double flap)" | |||
| Medium | 8" w x 15" h | 9 3/16" w x 18 3/16" h | 11 1/2" w x 20" h | |
| 8" w x 14" h | 9" - 22" (single flap)8"" - 21"" (double flap)" | |||
| Large | 10" w x 19" h | 11 3/16" w x 22 3/16" h | 13 9/16" w x 24" | |
| 10" w x 18" h | 9" - 28" (single flap)8" - 27" (double flap) | |||
| Extra Large | 12" w x 23" h | 13 5/16" w x 26 1/4" h | 15 5/8" w x 28" h | |
| 12" w x 22" h | "9" - 36" (single flap)8"" - 34"" (double flap)" |
Need a replacement flap? See Endura Flap Replacements
Installation Instructions
Difficulty
Moderate
Steps
04
Time Required
1-2 hours
Sections
01
Flags
03
Parts
- 2 Flap Frames
Tools
- Pencil
- Drill with 3/8" (9,5 mm) drill bit
- Level
- Measuring Tape
- Jigsaw or Reciprocating Saw
Step 1 Prep the Rough Cutout
- To determine the area that will be needed to accommodate the door, measure the dimensions of the extended section on the back of the unit. This section of the door will be fitted into the door or wall. Please note that an installation template is not included with the kennel dog door.
- For Door Installations: If possible, remove the door from its hinges using a screwdriver and hammer to tap out the hinge pins. Lay the door flap for installation.
Step 2 Drill the Holes
- Once you are certain the pet door will work with your door or wall, mark the outline of the required rough cutout with a pencil.
- Drill holes through the corners just inside of the lines using a ⅜” (9,5 mm) drill bit.
Step 3 Saw An Opening
- Using a jigsaw, cut along the marked lines, making sure to cut straight.
Step 4 Attach the Frames
- Use screws (not included) to attach the outside frame. The frame ensures a tight seal and secures the door to the wall. Don't forget to use a level.
FAQ
Can I install the Endura Flap pet door directly into glass?No, but you can get a pane of glass with the Endura Flap built directly into it that you can then install into your sliding glass door. |
